This simulation is about an Analysis of Turbulent Air Flow Over Monument using ANSYS CFX software. We perform this CFD project and investigate it by CFD analysis.

Analyzing turbulent airflow over monuments is a complex field that typically involves using computational fluid dynamics (CFD), wind tunnel testing, and field measurements. The core principles are drawn from studies of airflow over buildings, complex terrain, and atmospheric boundary layers.

Key aspects of the analysis
Aerodynamic effects on monument stability

• Pressure distribution: Turbulent airflow creates varying pressure distributions over the monument’s surface. High-velocity winds result in high pressures on the windward side and suction (low pressure) on the leeward side and roof.
• Wind loads: The force exerted by the wind (wind load) can cause vibration, material fatigue, and in extreme cases, structural failure. The analysis helps determine the maximum expected wind load for engineering and preservation purposes.
• Vortex shedding: As air flows past a monument, it can create vortices (swirling air pockets) that shed alternately from the sides. This can cause the monument to oscillate or “gallop,” leading to structural damage over time, a phenomenon known as vortex-induced vibration.

• Pollutant dispersion: Airflow patterns, including recirculation zones and eddies created by the monument’s shape, can trap and concentrate air pollutants near the structure. These pollutants can accelerate the decay of the monument’s materials.
• Material erosion: The abrasive effect of high-velocity, turbulent air can erode a monument’s surfaces over time, especially if the air carries dust or other particulates.
• Moisture transport: Airflow patterns can affect how moisture interacts with the monument. Areas of recirculation can trap moisture, promoting biological growth, while other areas may experience increased drying, which can lead to cracking.

• Interaction with surrounding structures: The turbulent wake created by a monument can influence the airflow patterns of surrounding buildings and urban areas, and vice versa. This is a critical consideration in urban planning to ensure adequate ventilation and prevent the concentration of pollutants.
• Pedestrian comfort: The complex flow patterns around monuments, especially tall ones, can create high-velocity wind zones at ground level, impacting pedestrian comfort and safety.

• Computational Fluid Dynamics (CFD): Numerical simulations are a primary tool for modeling turbulent airflow over monuments.
  • Modeling: CFD uses mathematical models to simulate the behavior of fluids. For turbulent flow, models like the k-ε and k-ω models are commonly used to predict velocity fields, pressure distribution, and turbulence intensity.
  • Validation: CFD results are often validated against experimental data from wind tunnel tests or field measurements to ensure accuracy.
• Wind tunnel testing: Physical models of the monument are placed in a controlled wind tunnel environment to measure airflow characteristics and forces.
  • Measurements: Advanced instruments like hot-wire anemometers are used to measure velocity, turbulence, and pressure at different points around the model.
  • Scaling: Proper scaling laws must be applied to extrapolate the results from the model to the full-scale monument.
• Field measurements: Sensors are placed directly on or around the monument to collect real-world data on wind speed, direction, and turbulence. This provides an important baseline for validating theoretical models and simulations.

• Separation and reattachment: Airflow separates from the monument’s surface at sharp corners or curvatures, creating a wake region behind it. Further downstream, the flow may reattach to the surface, creating complex recirculation zones.
• Recirculation regions: These are areas behind the monument where the air flows in the reverse direction, creating a low-pressure zone. These zones can trap pollutants and contribute to structural issues.
• Boundary layer effects: The atmospheric boundary layer, with its varying wind speed and turbulence, significantly influences how the flow interacts with the monument. The monument’s height relative to the boundary layer thickness is an important factor.

This analysis has tried to simulate and analyze of Turbulent Air Flow Over Monument using ANSYS CFX software.

Geometry & Grid

The geometry required for this analysis was generated by Ansys Design Modeler software. The meshing required for this analysis was also generated by Ansys Meshing software. The mesh type used in this analysis is unstructured. The total number of volume properties for geometry is 6,9274e+011 mm³.

Model

In this analysis,  a steady-state analysis type was used to obtain the results to check the fluid flow. In this analysis, non-buoyant models have been used, and stationary domain motion has also been activated in this analysis.

Boundary Condition

The flow input for this geometry of a monument directs the flow of air at a fluid temperature of 25°C into the geometry. The turbulence boundary condition of a monument wall is considered to be shear stress transport according to the working conditions. The wall function is defined as automatic in the name selection section of the turbulence boundary condition. The normal speed for the mass momentum is equal to 22.3 m/s. The turbulence for the design modeler is set with an intensity equal to 5 %.

Discretization of Equations

In this analysis, high resolution is used for the advection scheme of the basic settings. In this analysis, the first-order is used for turbulence numerics. In this analysis, the residual type of convergence criteria is RMS, and the residual target of convergence criteria is 0,00001.

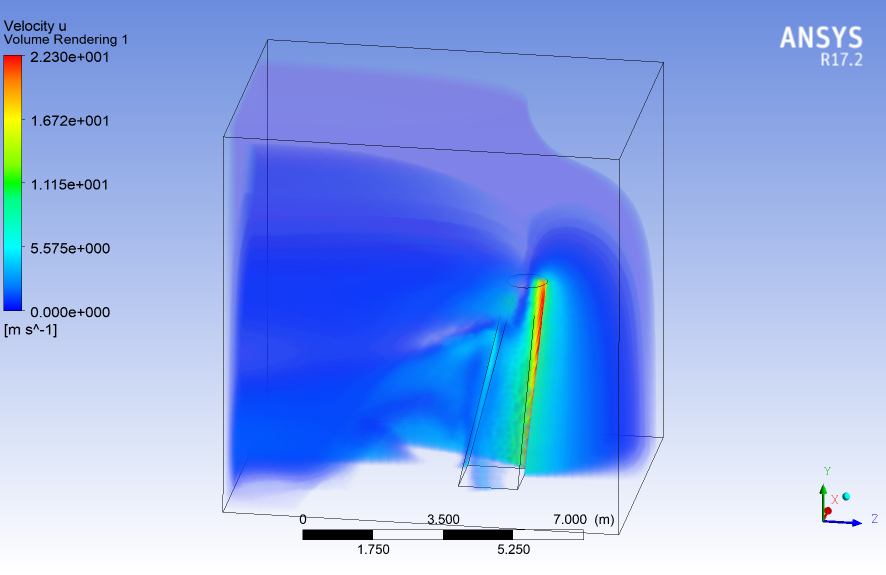

The results are presented as velocity u contours as well as volume rendering.
